The $4.00 Ham Radio Satellite Antenna

Article by Dave Tadlock

Simple, inexpensive and lots of fun! Here is an easy to make home brew antenna that can get you on the air working satellites or be built for use as a portable hand held antenna to extend the range of your HT.

It’s a dual band 2m/70 cm yagi antenna made with common materials and cost very little to make. Also, the antenna is fed with only one coaxial cable and does not use a duplexer.

For many decades radio amateurs have built antennas with wood and wire and have had great success using their home brew creations. This antenna was built in the same tradition and I am pleased to say that I made my first satellite contact using such an antenna.

To make this antenna I only needed to buy just a couple of items. Everything else I had on hand. I had to buy the wood for the boom, two 1-1/4″ long machine screws (although I bought 4 total) and a package of small wire nuts to place on the ends of the elements just for a bit of safety. Since I already had the screws, coax and connectors I spent less than $4.00 to make this antenna. I have well gotten my money’s worth out of it and have thoroughly enjoyed using it!

Construction & Materials
The antenna is made with a 1×2 pine/spruce furring strip for use as a boom and steel coat hangers for antenna elements. I used two trim screws to hold each parasitic element in place and stainless steel #6 machine screws with matching hardware for the driven elements.

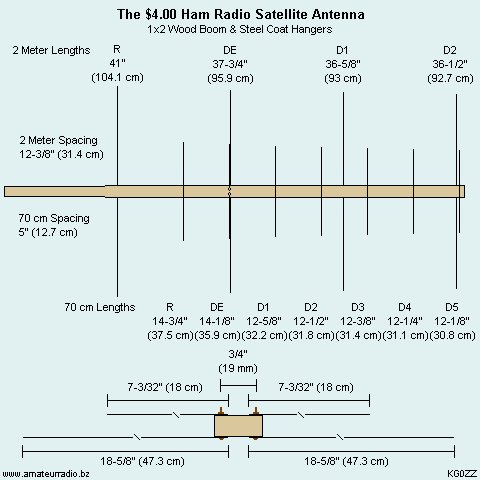

Although the dimensions shown in the diagram are for use with steel coat hangers, you can experiment with other materials such as welding rods, stainless steel rods, etc.

The first step was to mark the boom for the elements using a tape measure and a carpenter’s square. Some planning ahead of time on paper allowed me to make room for an extra 70 cm director just past the last 2 meter director.

In starting from scratch I began by marking the 2 meter elements on the straightest 1 x 2 x 8′ long furring strip that I could find from the lumber yard. An equal spacing of 12-3/8″ is what I used for the 2 meter band so that I could add an extra director to give the antenna a little extra gain over a three element yagi and still have a fairly short antenna. That would make the 2 meter yagi antenna length just over three feet long not including the handle.

At first I marked five 2 meter elements on the boom instead of four but after thinking about it I decided that the extra mark was a good spot to cut off the boom. This made the wood boom 50-3/4″ (128.9 cm) long.

Starting from the director end of the boom mark the boom as follows. A mark at 1-1/4″, 13-5/8″, 26″, 38-3/8″, and 50-3/4″ (3.2 cm, 34.6 cm, 66 cm, 97.5 cm & 128.9 cm).

Use a carpenter’s square and mark a straight line across the boom at each mark. This will also help to square the coat hanger elements. Cut the boom off at the 50-3/4″ (128.9 cm) mark.

Also along each line, mark the center of the boom. Doing this will simplify adding the elements.

Flip the board over, and again starting with the director end of the boom, mark the 70 cm elements as follows. A mark at 1″, 6″, 11″, 16″, 21″, 26″ and 31″ (2.5 cm, 15.2 cm, 27.9 cm, 40.6 cm, 53.3 cm, 66 cm & 78.7 cm). After using the square to mark a line across the board, mark the center of the boom along each line.

The next step in preparing the boom is to mark the two holes for the feed-point. The feed-point is located at the 26″ (66 cm) mark on the boom. From the center mark on the boom, measure out 3/8″ (9.5 mm) in both directions and mark for drilling two holes. The spacing between the two marks should end up being 3/4″ (19 mm) apart. If you are using #6 hardware then drill two 9/64″ holes through the boom to attach the dipole elements.

Once the boom is marked and the holes are drilled the handle can then be shaped. At the end for the handle trim a little wood off the edges and/or use some sandpaper to smooth out and form a nice handle. Using 80 grit sandpaper will make short work of this.

Four coat hangers will have to be straightened to make the 2 meter elements. If you don’t want to straighten all of the coat hangers to make the 70 cm elements then you’ll need at least seven more coat hangers. Straighten the coat hangers and cut to the size shown in the diagram.

After cutting the directors and reflectors use a marking pen and mark the center of each element.

Cut the coat hanger wire for the driven elements a couple of inches longer than needed. Bend a loop in one end of the coat hanger wire large enough to wrap around the machine screw. Then measuring from the end of the loop to the end of the element, cut the dipole half to the length shown in the diagram. After making the four dipole halves use sandpaper or a file to remove any enamel or vinyl coating from the ends of the coat hanger elements where the leads are attached to the two halves of the dipole elements. The enamel coating on the parasitic elements does not need to be removed.

The dipole elements are mounted to the boom using #6 stainless steel hardware. A flat washer is first placed on a #6 x 32 x 1-1/4″ machine screw. Next goes on the 2 meter element, then the assembly is placed through the hole in the boom. On the opposite side the 70 cm element is placed over the machine screw, then the coaxial cable connection, followed by a flat washer, split lock washer and a nut.

If you cannot get the leads from the coaxial cable to stretch straight across the feed-point then use the shortest length possible. The leads can be connected using crimp on ring connectors or by wrapping the coaxial cable leads directly around the machine screws between two flat washers.

To mount the reflectors and directors to the boom I used some 3/4″ long self tapping trim screws. You may instead use any screws with a large head or a screw with a flat washer.

Line up the center mark on the parasitic elements with the center marks on the boom then fasten each element using two screws. You may pre-drill two partial holes 1/8″ from the line on the boom for the screws that hold the elements to the boom.

Add a plastic wire nut (twist on wire connector) to each end of all the elements.

The coaxial cable feeds the dipole driven elements at a 90 degree angle. The cable is run along the boom and brought back past the 2 meter reflector then secured with either a plastic tie or vinyl tape. The antenna will not work properly if the cable is allowed to hang down near any of the elements.

Tuning the Antenna

f the antenna is built as shown then it should not need much tuning if any. Tuning is of course by adjusting the lengths of the dipole elements making them either shorter or longer as needed. Check the antenna outdoors with an SWR meter or analyzer. If you notice a big problem then most likely it is the connection at the antenna feed-point or possibly the UHF connector (PL-259 or BNC connector).

Parts List
