50 MHz 4 and 7 elements Yagi Drawings

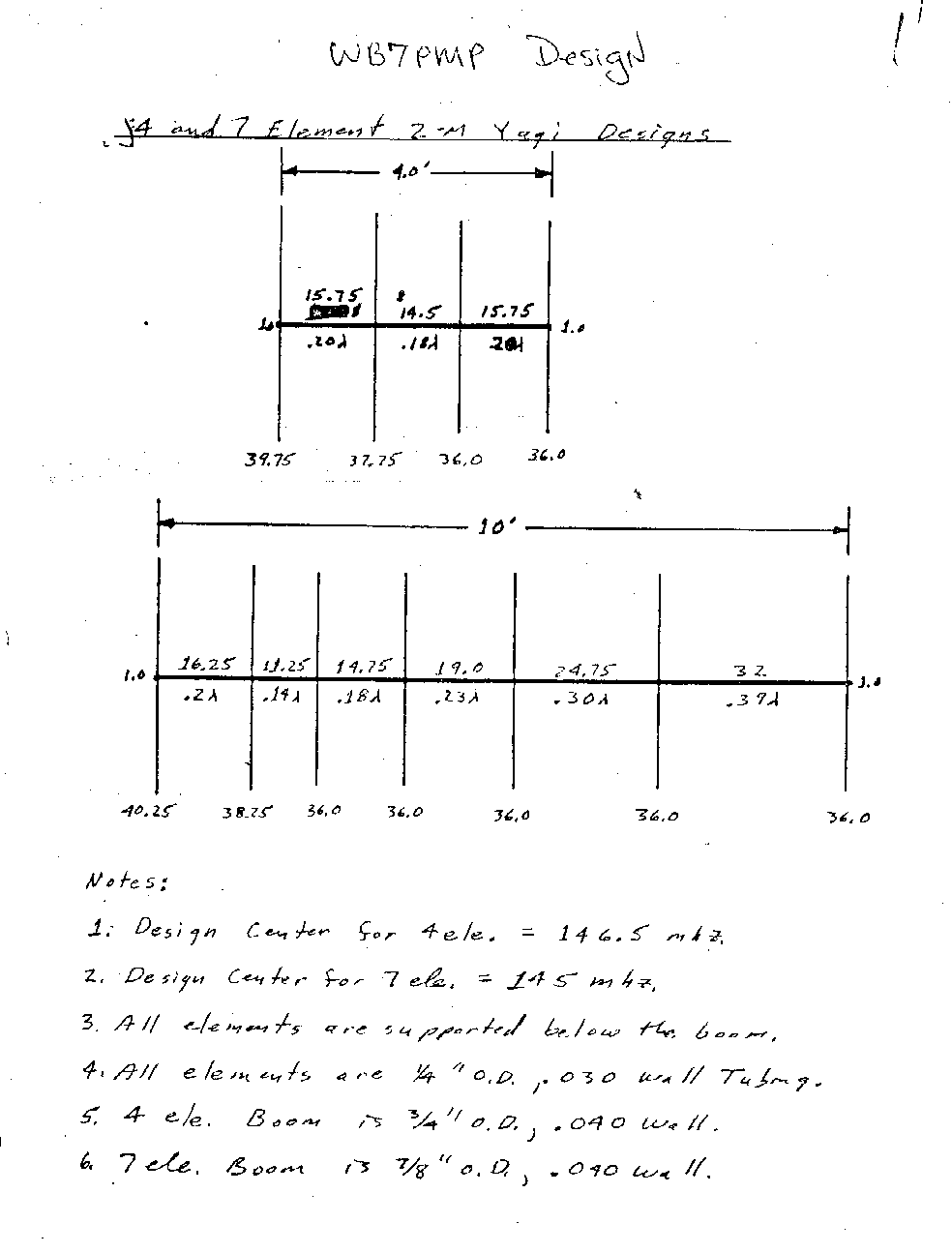

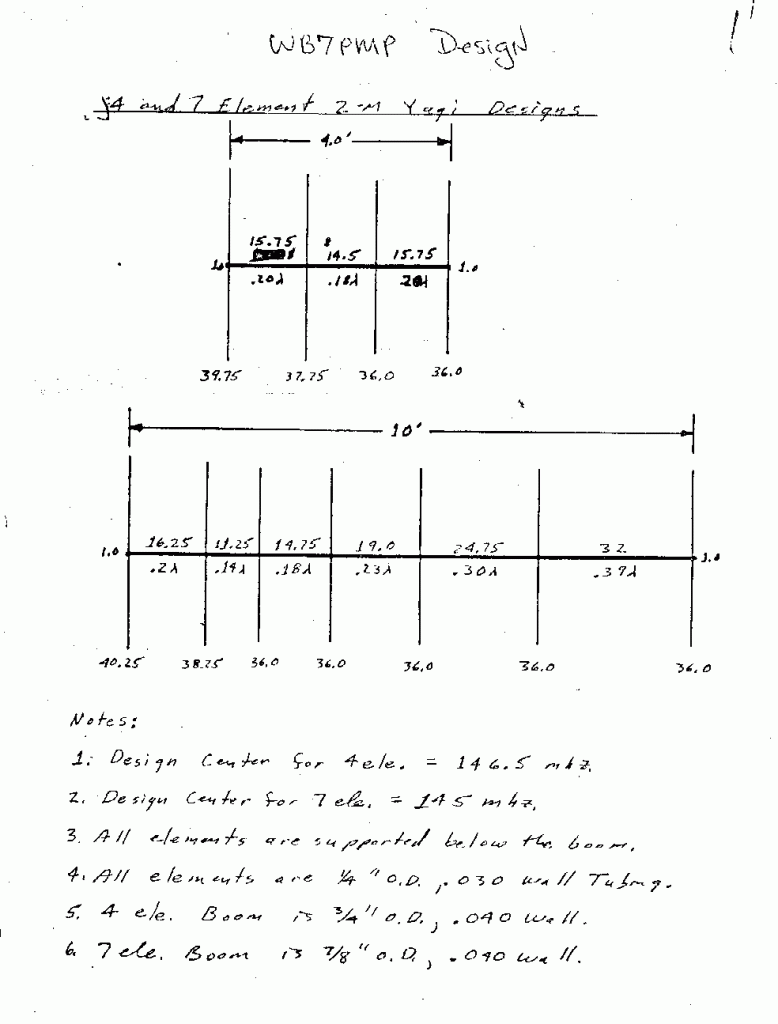

Just found this two old antenna drawings for a four and a seven elements yagi antenna by WB7PMP.

Looks interesting plans but have not yet attempted to build them.
