The Bazooka Antenna
A Bazooka Antenna plan for 40 meters band
The antenna bazooka is a powerful, high-quality mono-band dipole that is easy to do yourself.
At the ends of the coaxial cable, the sheath and the core are welded together and continue with a monopolar cable of copper.
A 40 m, the antenna has a bandwidth of about 300 kHz
This antenna is ideal for its performance for QRP work.
Both the RG-58 RG-213 that are suitable
Due to the weight of the antenna, and the traction on the coaxial cable is advisable to cling to a long strand of nylon.

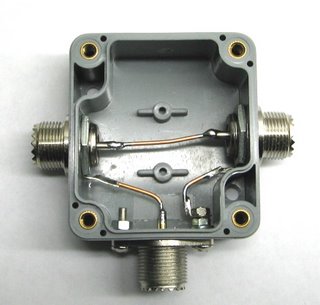

Central Connector for a Bazooka Antenna
Here is an overview of the dimensions in cm.
Band – Total lenght – Coax Lenght – Finals
10 m- ——-489———351————–73
15 m———663———468.5———–98
20m———990———700————-143
40m———1990——–1405————294
45m———2114———1494————311
80m———3897——–2753————572
Simone, Where do you get this box to create the center of the antenna? What is it called?
Thanks for the article.
73 de KE8GKO
Jody
I’ve found it at an electronic store, it does not a part name.
Hi Simone,
thanks for publishing the antenna design with its interesting feeding concept.
I am just wondering what is the advantage of this design versus a regular dipole with almost identical dimensions?
Best regards
Joerg
DL8EBM / N1VCA
As far as I know, bandwidth and constant low swr.
Joerg, well in my experience, bandwith and constant low swr
